ASTE Wiki

Open-use program > sample device tables†

What's this page?

This page provides sample device tables.

Revision history

• 2023-08-01 - uploaded sample device files for CAT8W
• 2023-07-19 - created

Table of contents

• Open-use program > sample device tables
  • Sample device tables
    • DASH345
    • CAT8W

Sample device tables†

• Frequencies come from Splatalogue (http://www.cv.nrao.edu/php/splat/).

DASH345†

Spectrometer	Bandwidth [MHz]	Line	Sideband	Dev.Table

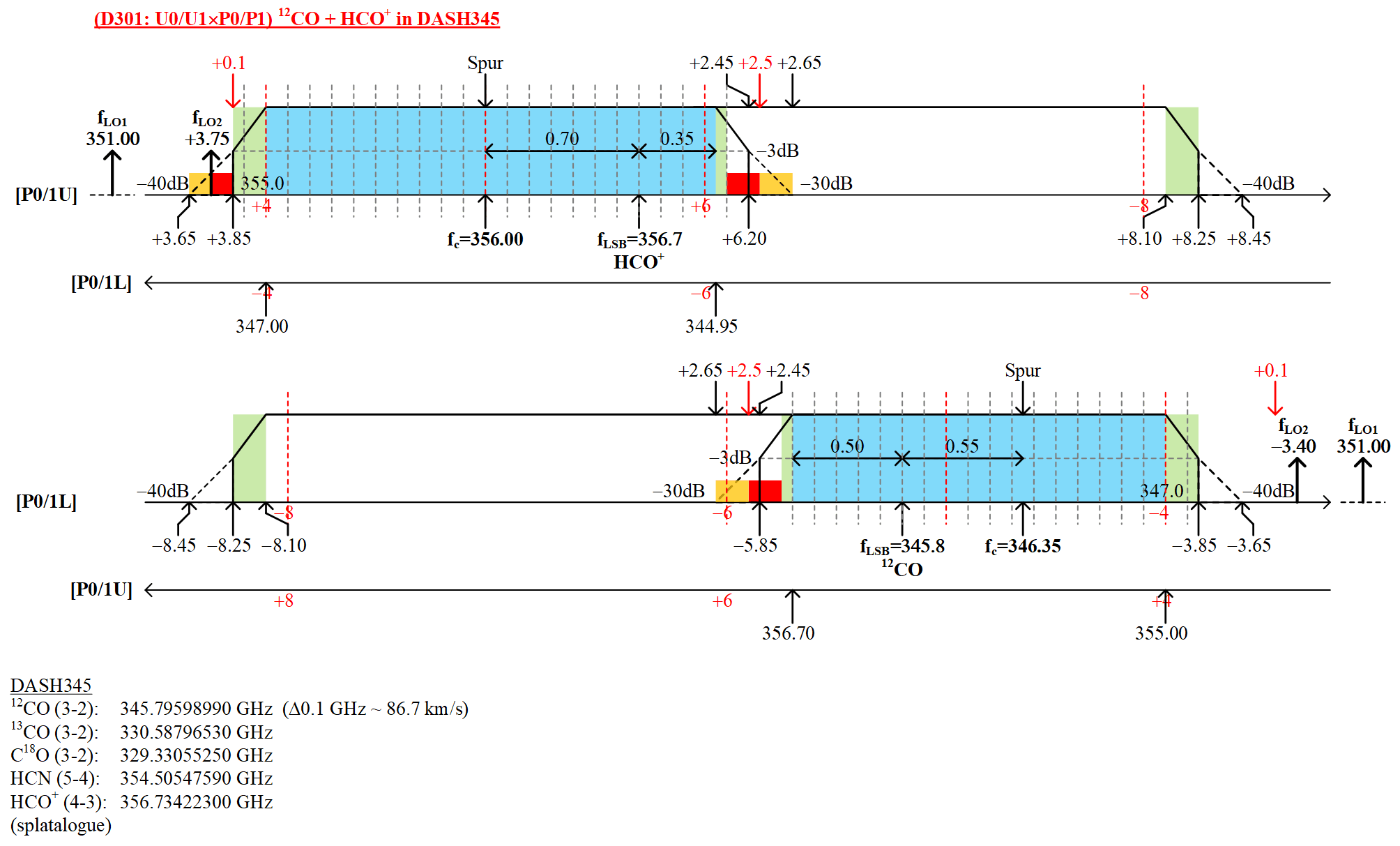

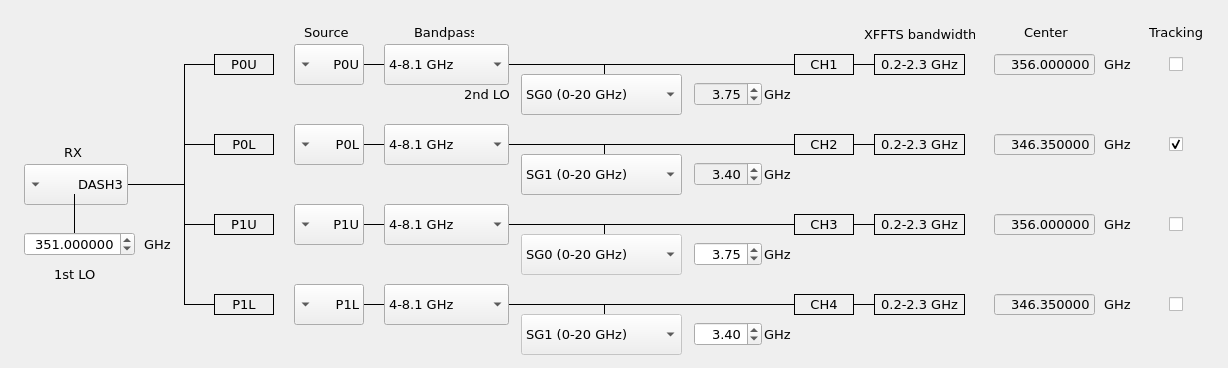

XFFTS	2500	12CO(3-2)	LSB	/ (*1)
		HCO+	USB

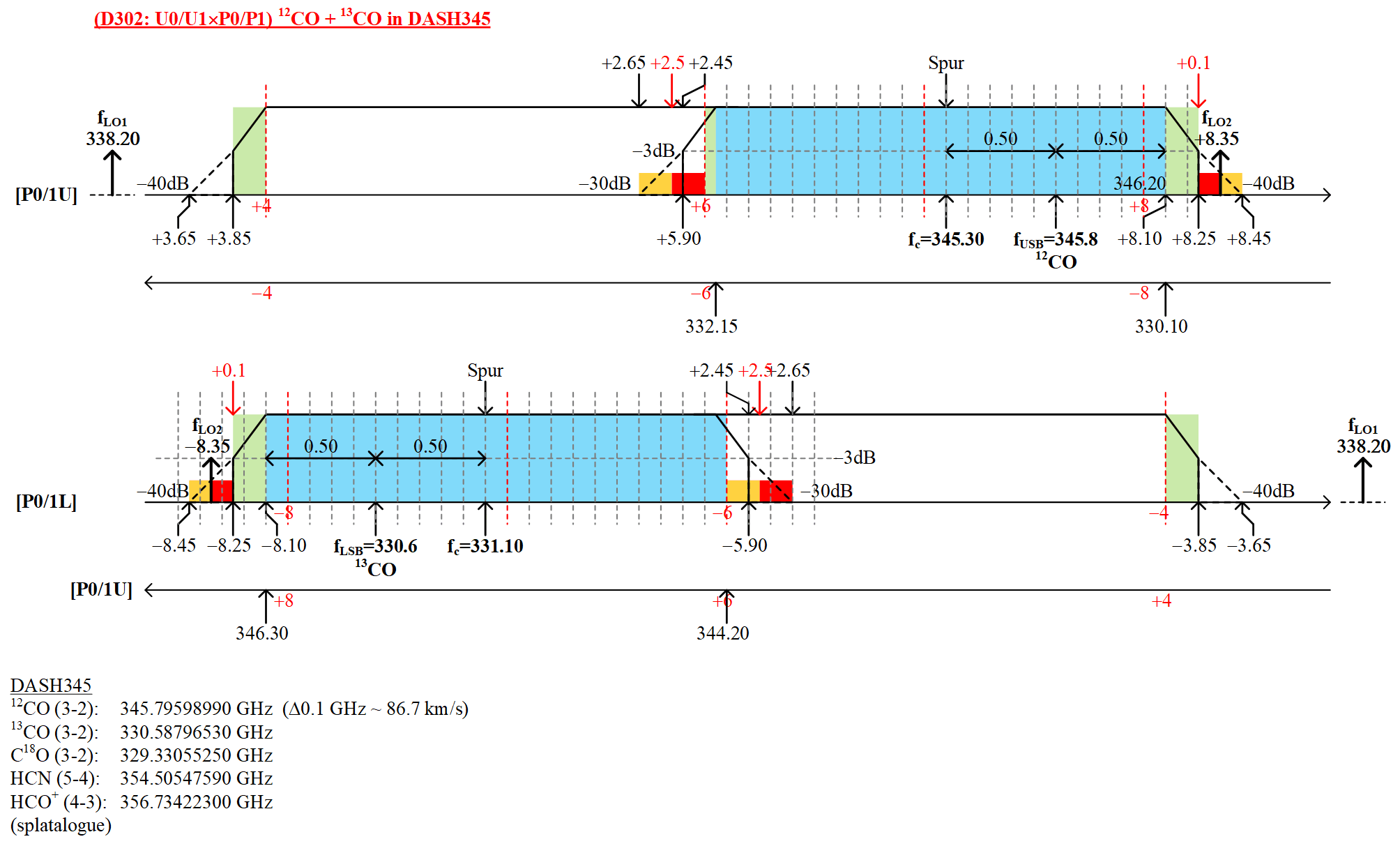

XFFTS	2500	12CO(3-2)	USB	/ (*1)
		13CO(3-2)	LSB

CAT8W†

Spectrometer	Bandwidth [MHz]	Line	Sideband	Dev.Table

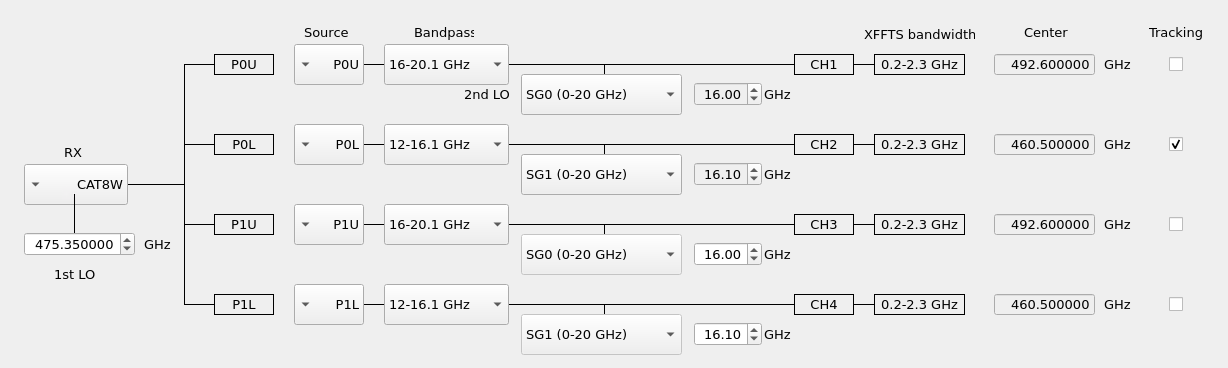

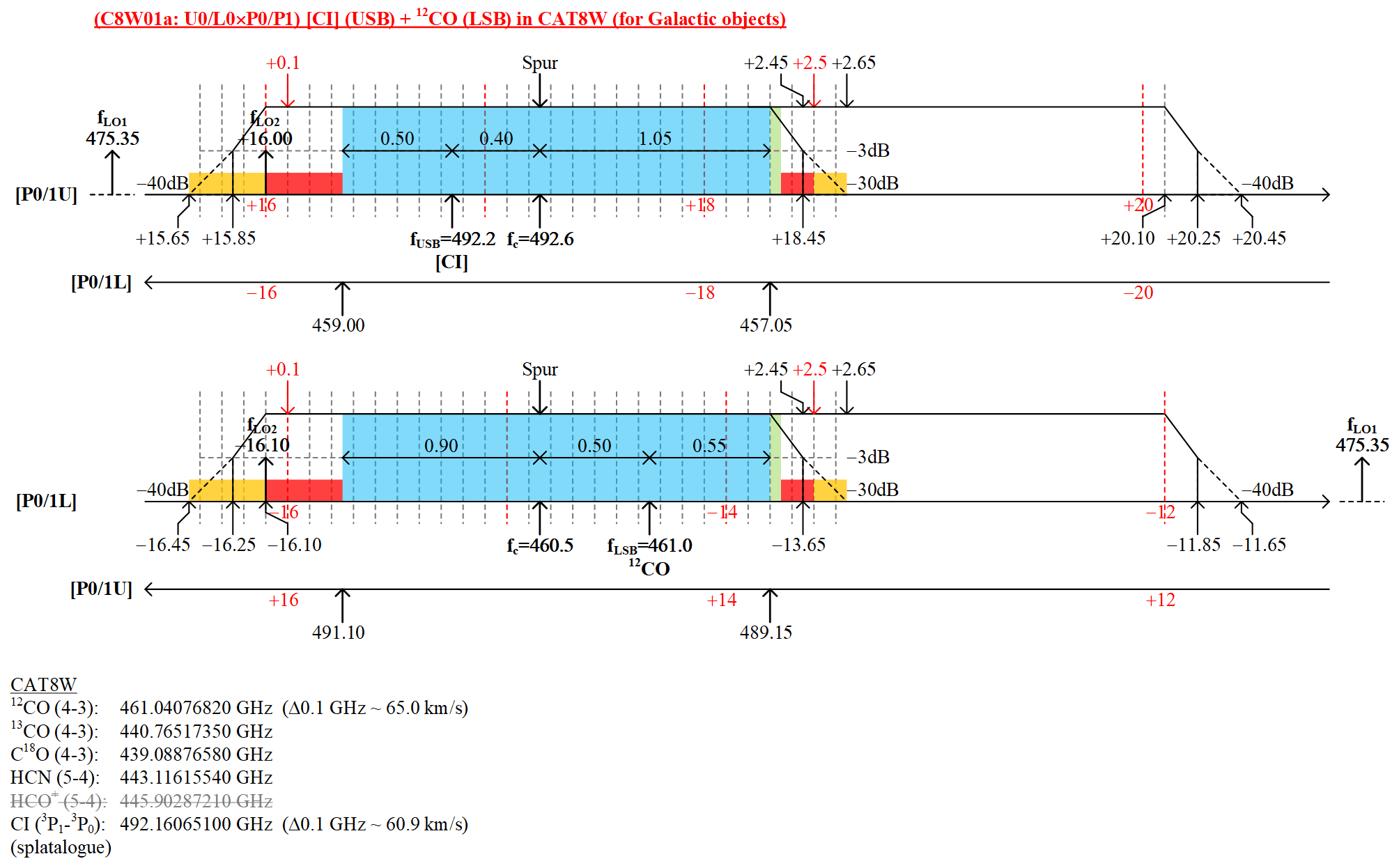

XFFTS	2500	12CO(4-3)	LSB	/ (*1)
		[CI]	USB

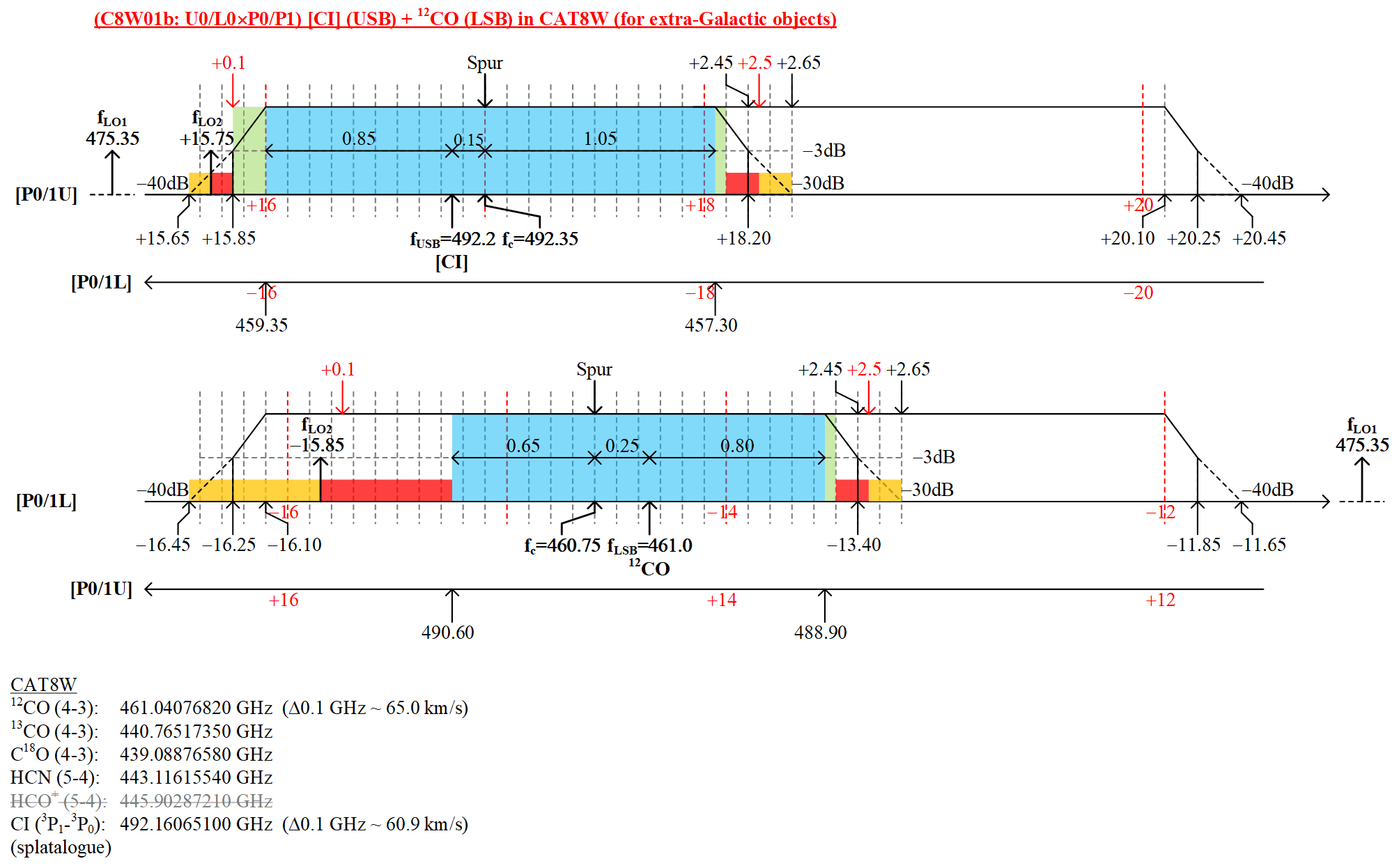

XFFTS	2500	12CO(4-3)	LSB	/ (*2)
		[CI]	USB

(*1) Spectral specification to avoid the spur located at the center channel (*2) Spectral specification for wider bandwidth
