ASTE Wiki

Open-use program > sample device tables†

What's this page?

This page provides sample device tables.

Last update

• 2019-06-17

Table of contents

• Open-use program > sample device tables
  • Sample device tables
    • DASH345
    • BAND8

Sample device tables†

• Frequencies come from Splatalogue (http://www.cv.nrao.edu/php/splat/).

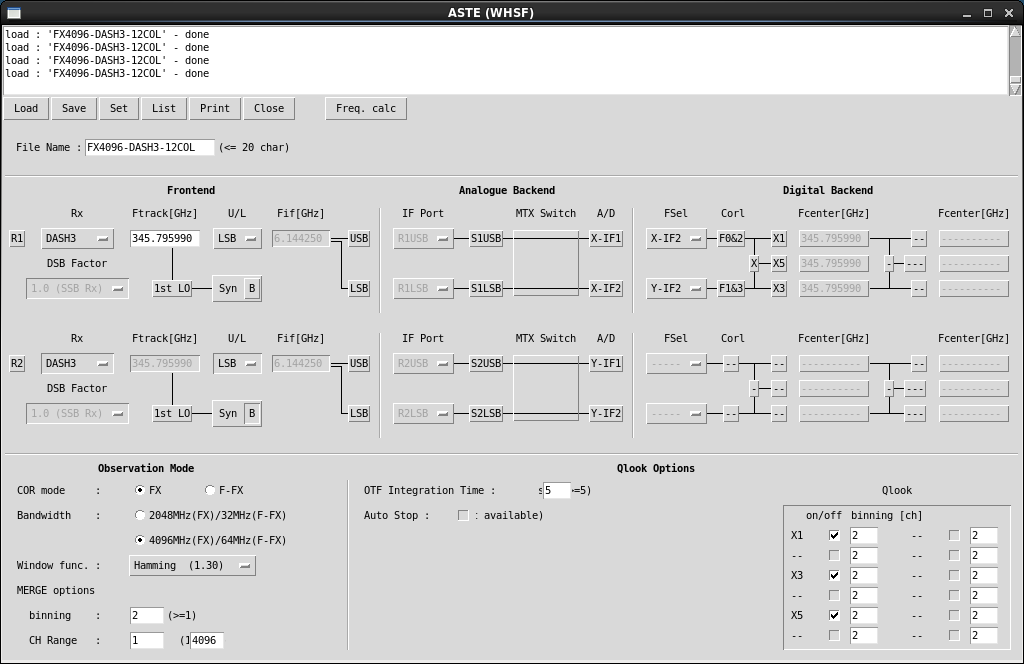

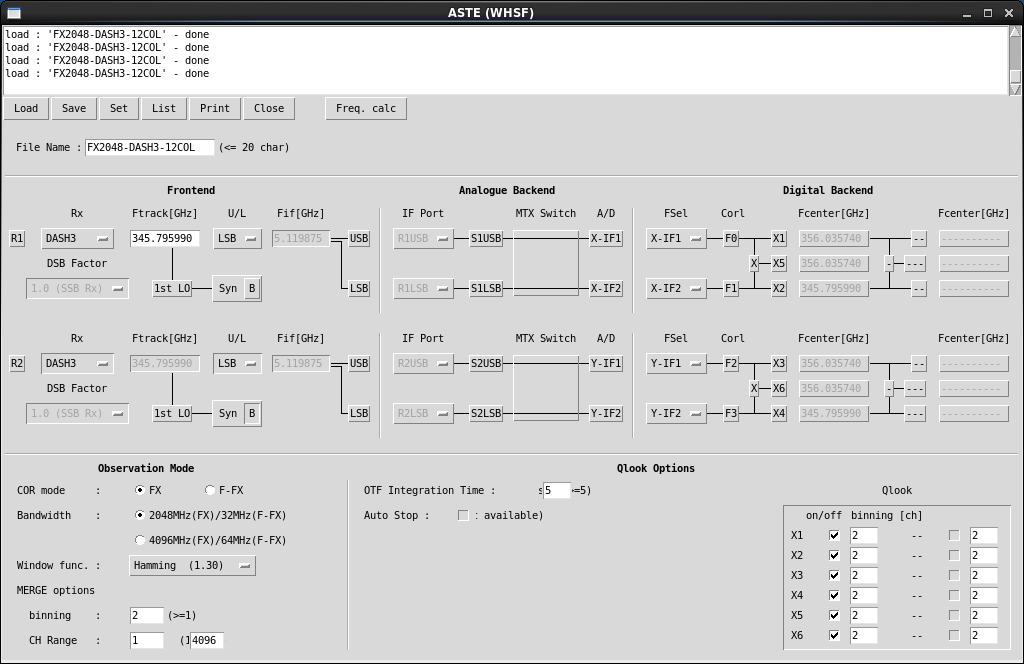

DASH345†

Spectrometer	Mode	Bandwidth [MHz]	Line	Sideband	Dev.Table
WHSF	FX	1024	12CO(3-2)	LSB	(*1)
		2048
		4096

(*1) Qlook shows 2048 channels over 2048 MHz after 2-channel binning of 4096 channels over 2048 MHz in spite of Qlook Options in observation tables.

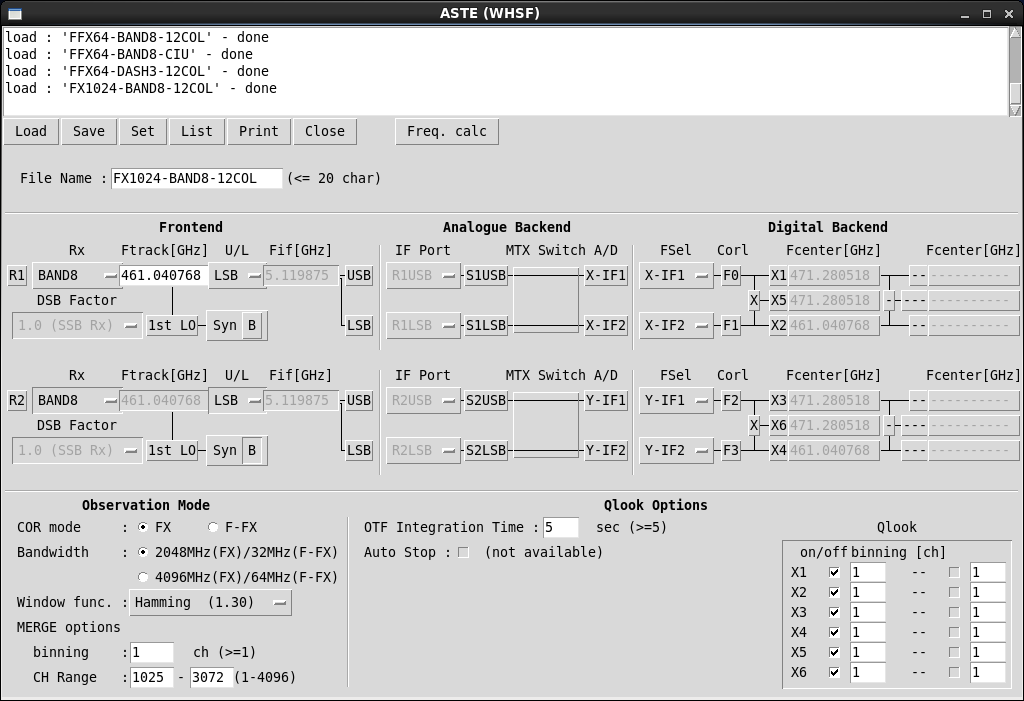

BAND8†

Spectrometer	Mode	Bandwidth [MHz]	Line	Sideband	Dev.Table
WHSF	FX	1024	12CO(4-3)	LSB	(*1)
		2048
		4096

(*1) Qlook shows 2048 channels over 2048 MHz after 2-channel binning of 4096 channels over 2048 MHz in spite of Qlook Options in observation tables.
